Performance and features

1. Suitable for three-phase three-wire, single-phase two-wire power supply 50Hz, 60Hz system;

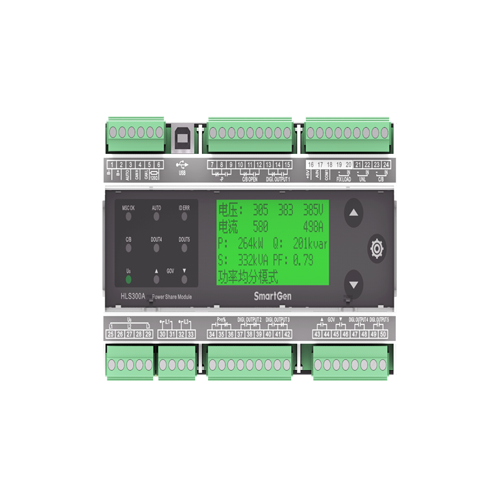

2. Liquid crystal display LCD is 132x64, with backlight display, touch the button to switch the display page or set the operating parameters of the module;

3. The operating parameters of the module can be set through the upper computer test software. When in use, the module is connected to the upper computer through the USB port;

4. With 10 relay outputs, 2 relays are used for GOV frequency up and down control output, 5 relays are used for programmable control output, 2 relays are used for -P negative power, P>n% indicating output, 1 relay is used for C/B OPEN opening output control;

5. With 1 FIXLOAD fixed mode, 1 UNL unloading, 1 closing and 1 AUTO switch input;

6. When the generator is not working, press and hold the UP button for 3 seconds on the information display interface to enter the test mode to test whether the LCD display, relay output and panel indicators are normal;

7. Wide range of power supply DC(8~35)V;

8. The controller adopts 35mm guide rail installation mode;

9. Modular structure design, pluggable terminal blocks, compact structure and easy installation.
