Performance characteristics

1. Using 32-bit ARM single-chip microcomputer, the hardware integration is high, and the reliability is further improved;

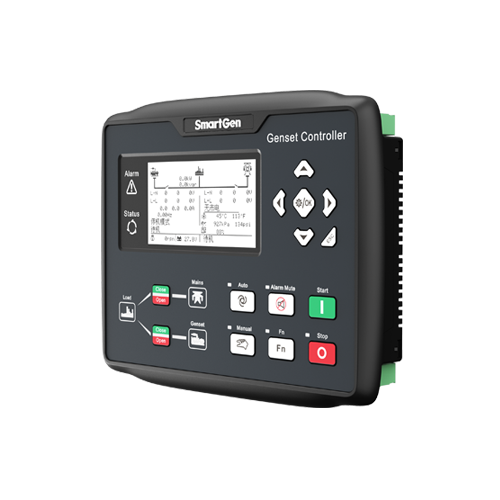

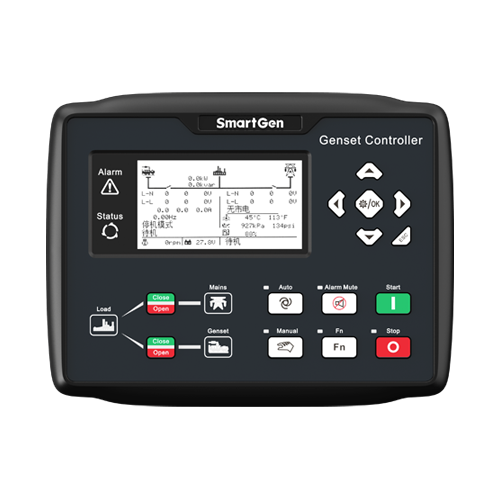

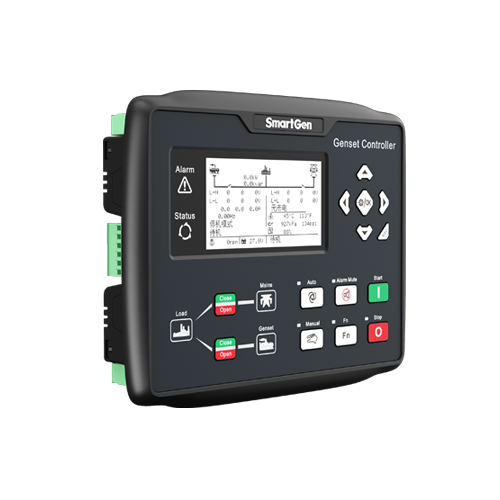

2. The liquid crystal display LCD is 240x128, with backlight, Chinese, English and other multiple languages can be selected for interface operation, and can be selected on site, which is convenient for factory debuggers to test the machine;

3. The screen protection adopts hard-screen acrylic material, which has good wear resistance and scratch resistance;

4. Using silica gel panel and buttons, strong ability to adapt to the high and low temperature of the environment;

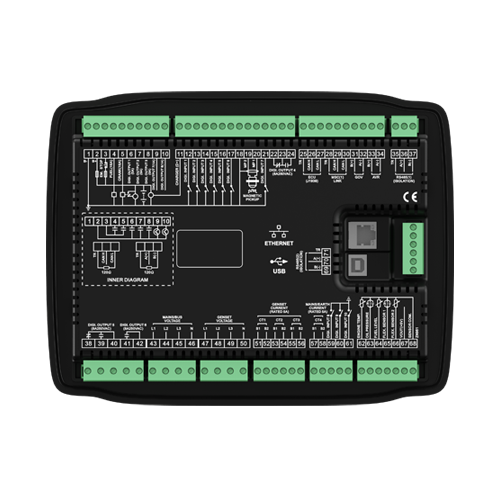

5. With two RS485 communication interfaces, the "three remotes" function can be realized by using the MODBUS protocol;

6. With CAN BUS interface, it can be connected to EFI with J1939. Not only can it monitor the common data of EFI (such as water temperature, oil pressure, speed, fuel consumption, etc.), it can also control startup, shutdown, etc. through CANBUS interface. Increase and decrease speed, etc.;

7. Suitable for three-phase four-wire, three-phase three-wire, single-phase two-wire, two-phase three-wire (120/240V) power 50/60Hz system;

8. Collect and display mains/generation three-phase voltage, mains/generation frequency, generation three-phase current, generation power, and generation voltage harmonic parameters.
